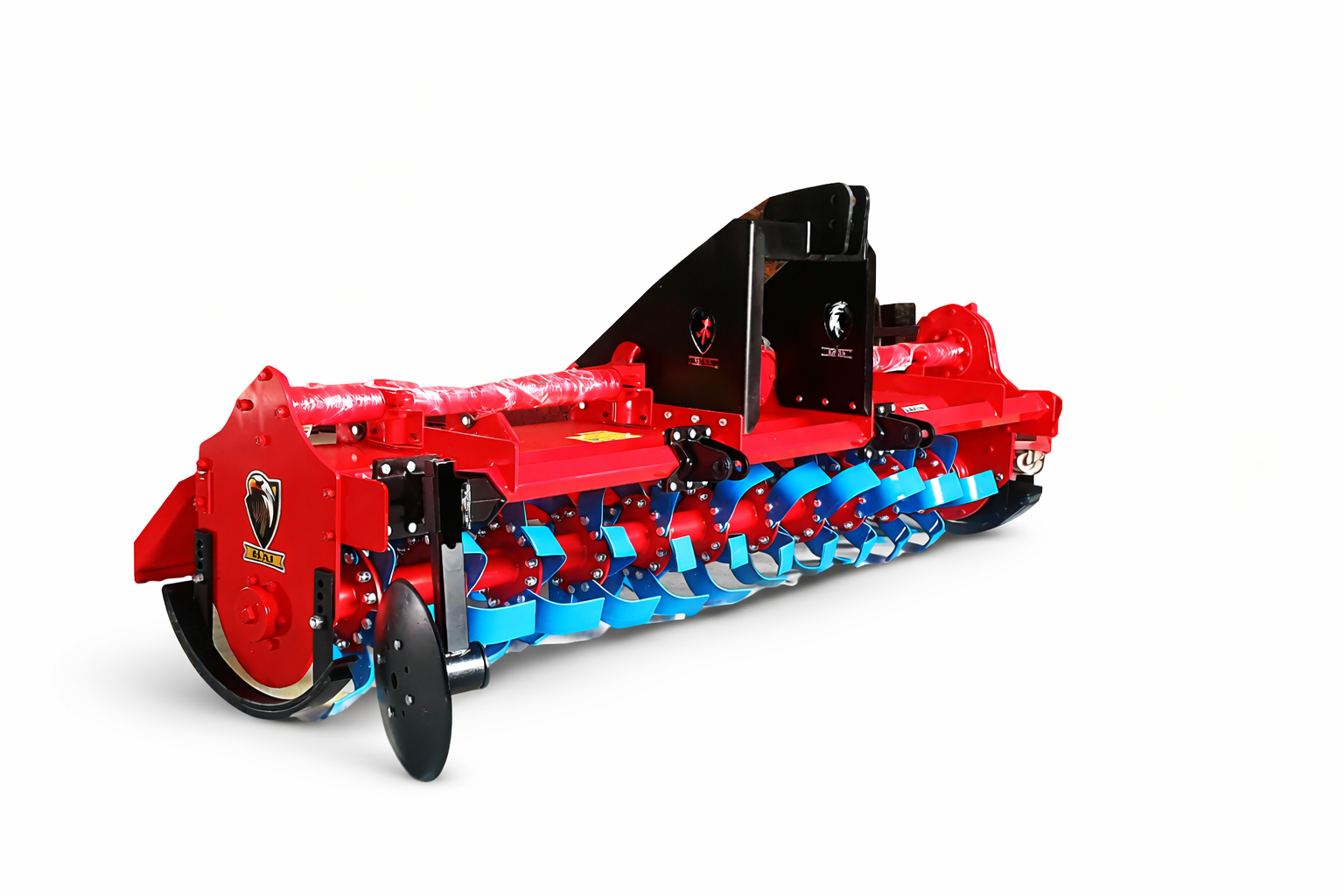

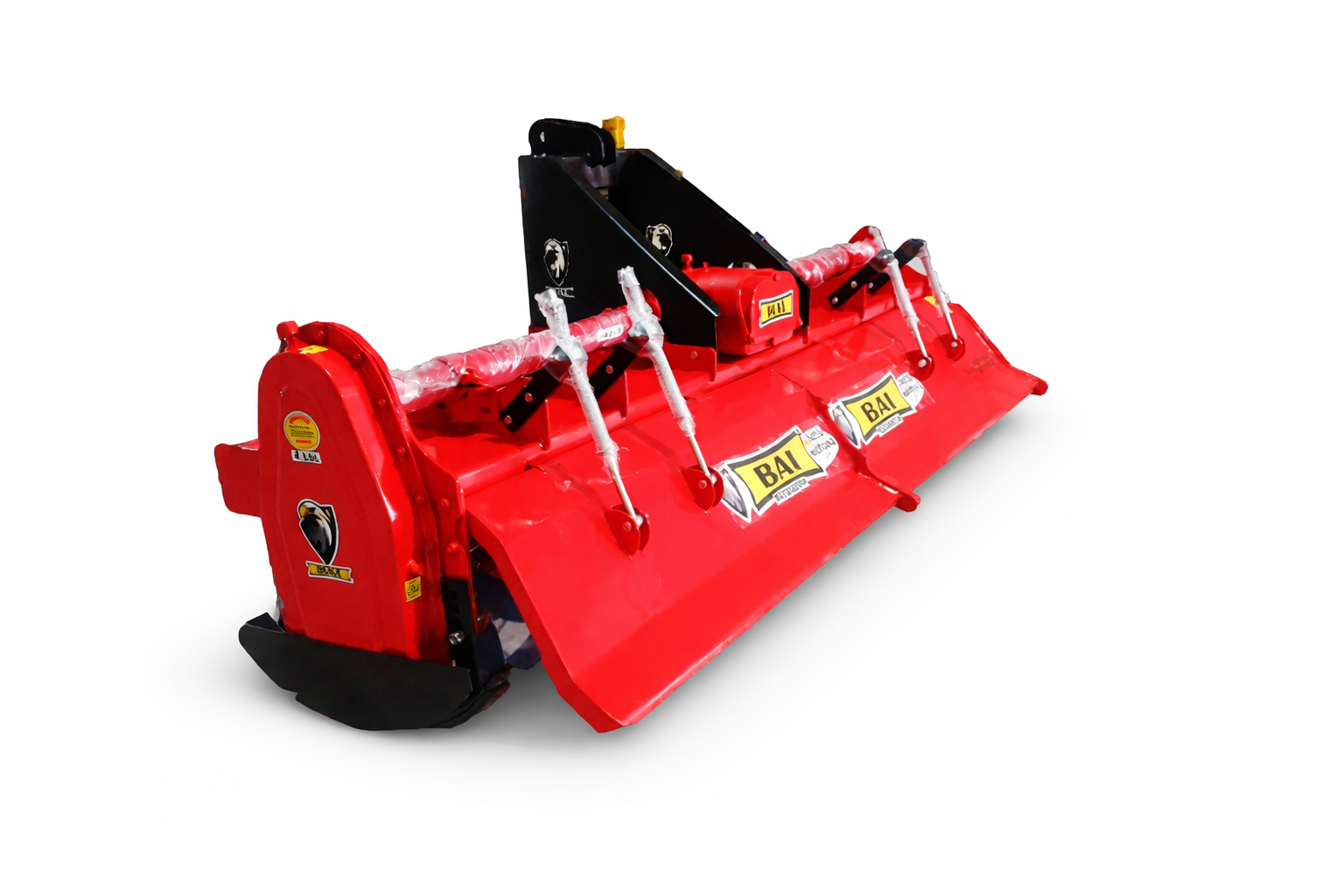

Rotavator
Our Rotavator is a high-performance agricultural implement designed to deliver efficient soil preparation for modern farming needs. Built with a strong, durable frame and precision-engineered components, it ensures excellent soil pulverization, weed control, and uniform mixing of crop residues in a single operation.
Powered through a PTO-driven system, the rotavator is compatible with a wide range of tractors and performs reliably across dry, wet, and hard soil conditions. Its heat-treated blades provide consistent depth and superior tillage results while reducing fuel consumption and operational time.
Super Series
| S No. | Type | Model | Working Width | No. of Blade | Weight (kg) | Sheet Thickness | Gear Box Type | PTO RPM | Tractor Power Required (H.P) | Side Gear Pair Ratio | Crown/Pinion | Spur Gear |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Heavy Duty | BAI-4206H | 6 ft | 42 | 510 | 5 mm | Multi speed / Single Speed | 540/1000 | 45-50 | 21x36x28 | 13x23 | 16x19, 17x18, 13x22, 15x20 |
| 2 | Heavy Duty | BAI-4807H | 7 ft | 48 | 540 | 5 mm | Multi speed / Single Speed | 540/1000 | 45-55 | 21x36x28 | 13x23 | 16x19, 17x18, 13x22, 15x20 |
| 3 | Heavy Duty | BAI-6008H | 8 ft | 60 | 580 | 5 mm | Multi speed / Single Speed | 540/1000 | 55-65 | 21x36x28 | 13x23 | 16x19, 17x18, 13x22, 15x20 |
| 4 | Heavy Duty | BAI-7209H | 9 ft | 72 | 610 | 6 mm | Multi speed / Single Speed | 540/1000 | 65-75 | 21x36x28 | 13x23 | 16x19, 17x18, 13x22, 15x20 |
Regular Series
| S No. | Type | Model | Working Width | No. of Blade | Weight (kg) | Sheet Thickness | Gear Box Type | PTO RPM | Tractor Power Required (H.P) | Side Gear Pair Ratio | Crown/Pinion | Spur Gear |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | Medium Duty | BAI-4206M | 6 ft | 42 | 480 | 4 mm | Multi speed / Single Speed | 540/1000 | 40-50 | 20x35x28 | 11x22 | 16x19, 17x18, 13x22, 15x20 |
| 6 | Medium Duty | BAI-4807M | 7 ft | 48 | 510 | 4 mm | Multi speed / Single Speed | 540/1000 | 45-55 | 20x35x28 | 11x22 | 16x19, 17x18, 13x22, 15x20 |
| 7 | Medium Duty | BAI-6008M | 8 ft | 60 | 560 | 4 mm | Multi speed / Single Speed | 540/1000 | 55-65 | 20x35x28 | 11x22 | 16x19, 17x18, 13x22, 15x20 |
